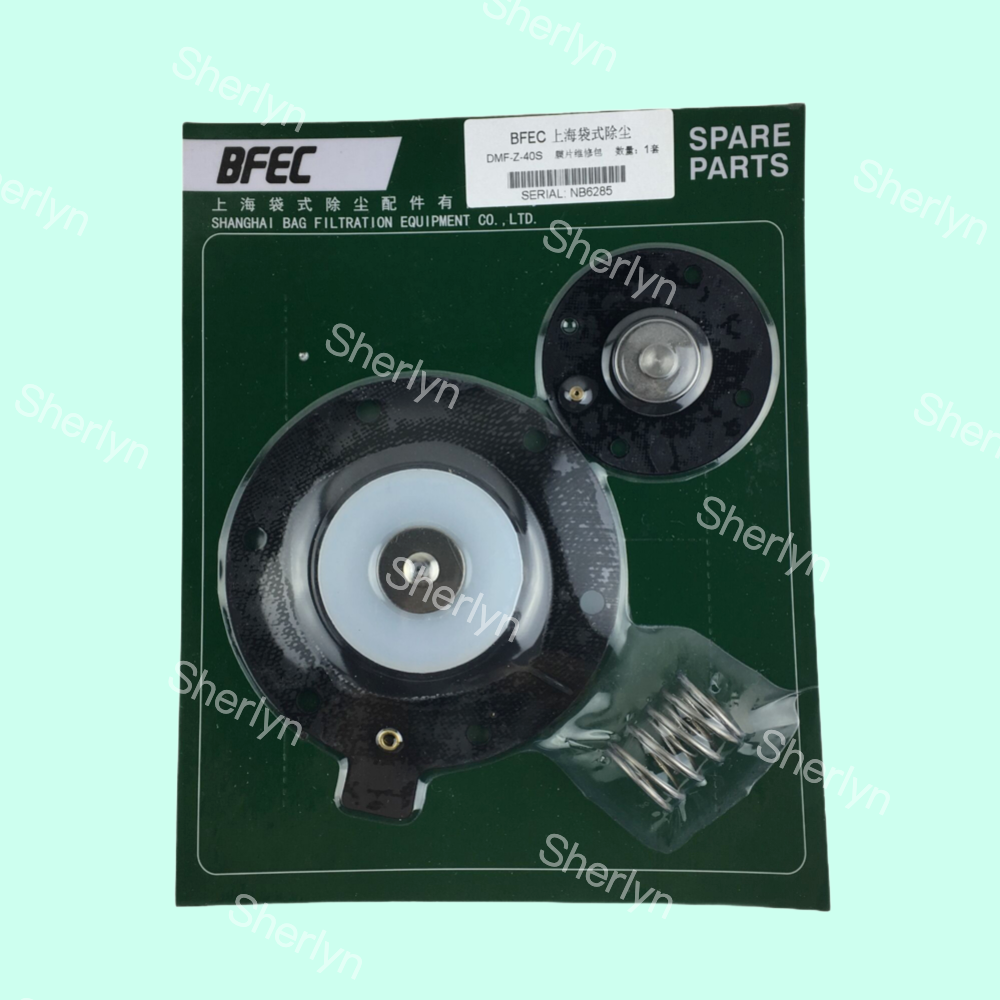

Detailed Product Description
| Product Name: | Diaphragm Repair Kit | Mounting Hole Size: | φ7mm |
|---|
| Diaphragm Material: | NBR (Buna) | Diaphragm OD: | φ111.5mm |
|---|
| Center Distance: | φ98mm | Seat Material: | Nylon |
|---|
| Seat OD: | φ56.5mm | Seat ID: | φ36.5mm |
|---|
| Bleed Hole: | 1 | Spring: | 2 |
|---|
| Packaging: | Individual Plastic Bag Sealed | Suitable Valves: | MF-Z-40S, DMF-Z-40S MF-Y-40S, DMF-Y-40S MF-ZM-40S, DMF-ZM-40S |
|---|
| Highlight: | DMF-Z-40S Diaphragm Repair Kit,DMF-Y-40S Diaphragm Repair Kit,DMF-ZM-40S Diaphragm Repair Kit |
|---|
Product Description:
The diaphragm of the BFEC DMF series bag pulse valve is a vital
component that functions as a flexible sealing element requiring
frequent opening and closing to regulate the flow of compressed
air. It serves as the "heart" of the pulse valve, with its quality
and performance being of utmost importance.
Structural Features: The diaphragm typically consists of a metal rivet head to seal
compressed air pipelines or valve ports, a vent and unloading hole,
as well as bolt holes around for installation and support. Many
diaphragm products incorporate a layer of durable knit fabric
within the rubber material to enhance durability and mechanical
strength. This design enables the diaphragm to endure frequent
movements and high-pressure differentials, with some diaphragms
featuring concentric circular ripples.
Key Material: The diaphragm is primarily crafted from high-quality nitrile
rubber (NBR), imparting excellent oil resistance, wear resistance,
aging resistance, and certain levels of acid, alkali, and
high-temperature resistance. Specialized materials like
fluororubber (FKM) or silicone rubber are utilized for specific
working conditions, such as extreme temperatures and corrosive
environments, providing a broader temperature range (-80 ℃ to +232
℃) and superior chemical corrosion resistance.
Applications:
The BFEC DMF series pulse valve membrane is specifically designed
for the cleaning system of pulse bag filters and is widely used in
industrial fields that require dust control. It is commonly seen in
various industries such as:
- Cement industry: dust removal for equipment such as rotary kilns,
mills, and packaging machines.
- Steel metallurgy: flue gas purification for blast furnaces,
converters, electric furnaces, sintering machines, etc.
- Chemical industry: dust collection for various powder engineering,
drying equipment, and chemical reactors.
- Power industry: flue gas treatment for coal-fired boilers.
- Grain processing: dust control during grain handling, crushing, and
drying processes.
- Pharmaceutical industry: collection and purification of dust
generated during the production process.
- Wood processing: Collecting sawdust from processes such as sawing,
polishing, and planing.
In these applications, the diaphragm effectively removes the
accumulated dust on the filter bag by controlling the instantaneous
blowing of compressed air, ensuring the continuous and efficient
operation of the dust collector. It plays a key role in meeting
environmental emission standards, recovering valuable materials,
and improving the working environment.
Support and Services:
The Product Technical Support and Services for the Pulse Valve
Diaphragm product include troubleshooting assistance, product
installation guidance, maintenance recommendations, and repair
services. Our team of experienced technicians is available to
provide expert support to ensure optimal performance and longevity
of your pulse valve diaphragm.
Packing and Shipping:
Product Name: Pulse Valve Diaphragm
Description: High-quality diaphragm designed for pulse valves to
ensure efficient performance.
Material: Durable and resistant to wear and tear.
Package Includes: 1 Pulse Valve Diaphragm
Shipping Method: Standard Shipping
Shipping Time: 3-5 business days
