Product Description:
Pulse Jet valve is a type of valve that converts a continuous input
signal into a pulsed signal by utilizing the delay caused by gas
passing through gas resistance and gas capacity.
The internal design of the air inlet in the right angle pulse jet
valve, along with the installation and application of the
positioning steel ring, helps to prevent loosening from inertial
impact and ensures precise installation positioning simultaneously.
Even after extensive usage, the stainless steel nut remains
effective in facilitating easy disassembly and reassembly.
Applications:
Bag filter pulse cleaning system
Function: Control the instantaneous injection of compressed air into the
filter bag to remove surface dust.
Applicable equipment:
- Cement plant rotary kiln dust collector
- Steel plant blast furnace gas purification system
- Bag dust removal device for coal-fired power plants
- Dust collection system for chemical/pharmaceutical industry
- Material conveying and pneumatic conveying system
- Used for pulse airflow dredging when pipelines are blocked (such as
grain and fly ash conveying pipelines).

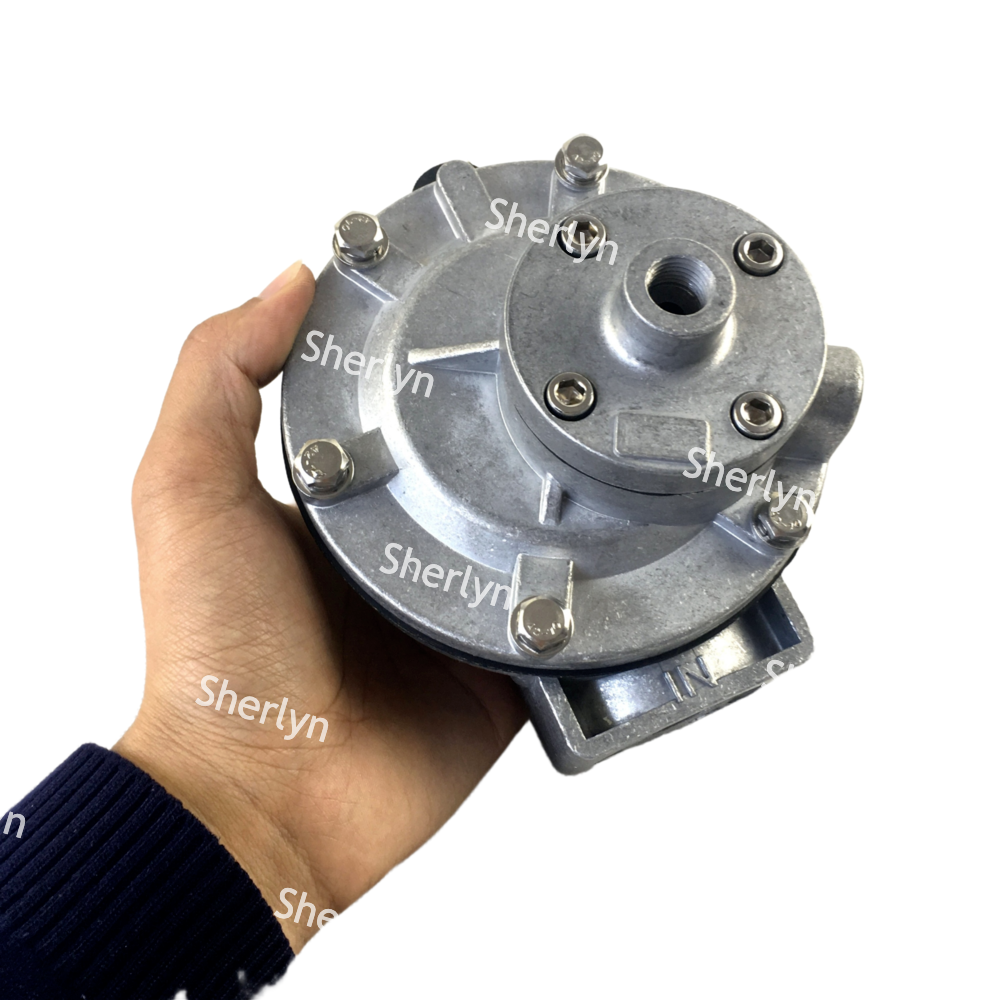

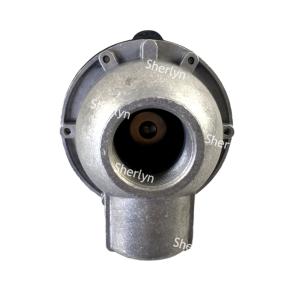

1 1/2'' RCA45T Goyen Type Remote Pilot Pulse Jet Valve For Dust
Collector
Pulse Jet Valve, also called diaphragm valve acts as a "switch" for
compressed air in the dust collector system for bag filters. It is
controlled by the electric signals from the Pulse Controller. Pulse
Jet Valves are used in filtering systems of dust collectors, gas
turbines, and desulfurization equipment. Pulse jet valves are
commonly used to clean filters such as cartridge filters, envelope
filters, ceramic filters, and sintered metal fiber filters.
Different pulse jet valve structure:
1. Threaded Type
2. Manifold Flat Mount Type
3. Dresser Nut Type
4. Straight Through Type
5. Flanged Type
| Model No | RCA15T | RCA20T | RCA25T | RCA35T | RCA45T | RCA50T | RCA62T | RCA76T |
| Orifice Size | 15 | 20 | 25 | 35 | 45 | 50 | 62 | 76 |
| (mm) |
| Port Size | 1/2'' | 3/4'' | 1'' | 1 1/2'' | 1 1/2'' | 2'' | 2 1/2'' | 3'' |
| Pilot Size | 1/8'', 1/4'' |
| Diaphragm Number | 1 | 2 |
| Working pressure | 5 to 125 psi |
| Diaphragm Material | NBR, FKM |
| Body Material | Aluminum (diecast) |
| Valve Structure | Right Angle (Outlet is at 90° to Inlet) |
Support and Services:
Our Product Technical Support and Services for the Pulse Jet Valves
include:
- Assistance with installation and setup
- Troubleshooting and diagnosis of issues
- Maintenance recommendations and schedules
- Repair and replacement services
- Training and educational resources for optimal operation
Packing and Shipping:
Product Packaging:
The Pulse Jet Valves are securely packaged in strong cardboard
boxes to ensure safe delivery. Each valve is individually wrapped
in protective material to prevent any damage during transportation.
Shipping Information:
We offer worldwide shipping for the Pulse Jet Valves. Orders are
processed within 1-2 business days and shipped using reliable
courier services. Customers will receive a tracking number to
monitor the delivery status of their order.
